DMX Smart Link HUB – Output Kit (Basic DMX Output)

Plug-and-play DMX output with network control built in.

The DMX Smart Link HUB – Output Kit adds physical DMX output to the Smart Link platform using a USB-to-DMX interface. Control DMX fixtures directly from Art-Net, smart lighting platforms, or the built-in web dashboard — no manual setup required.

⚠️ Important Note
This kit provides DMX OUTPUT only.

It does not support simultaneous DMX input.

👉 If you need DMX input and output at the same time, see the Pro Dual I/O Kit.

🔑 What’s Included

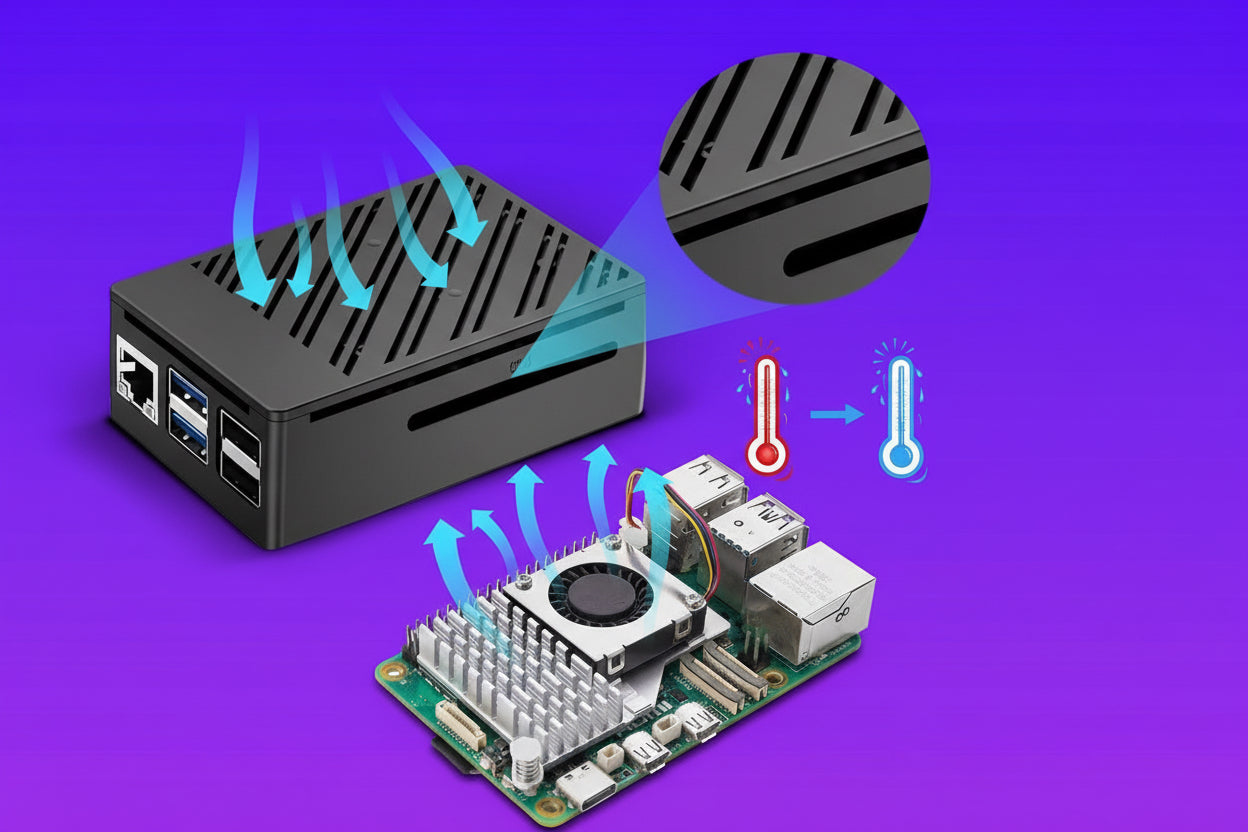

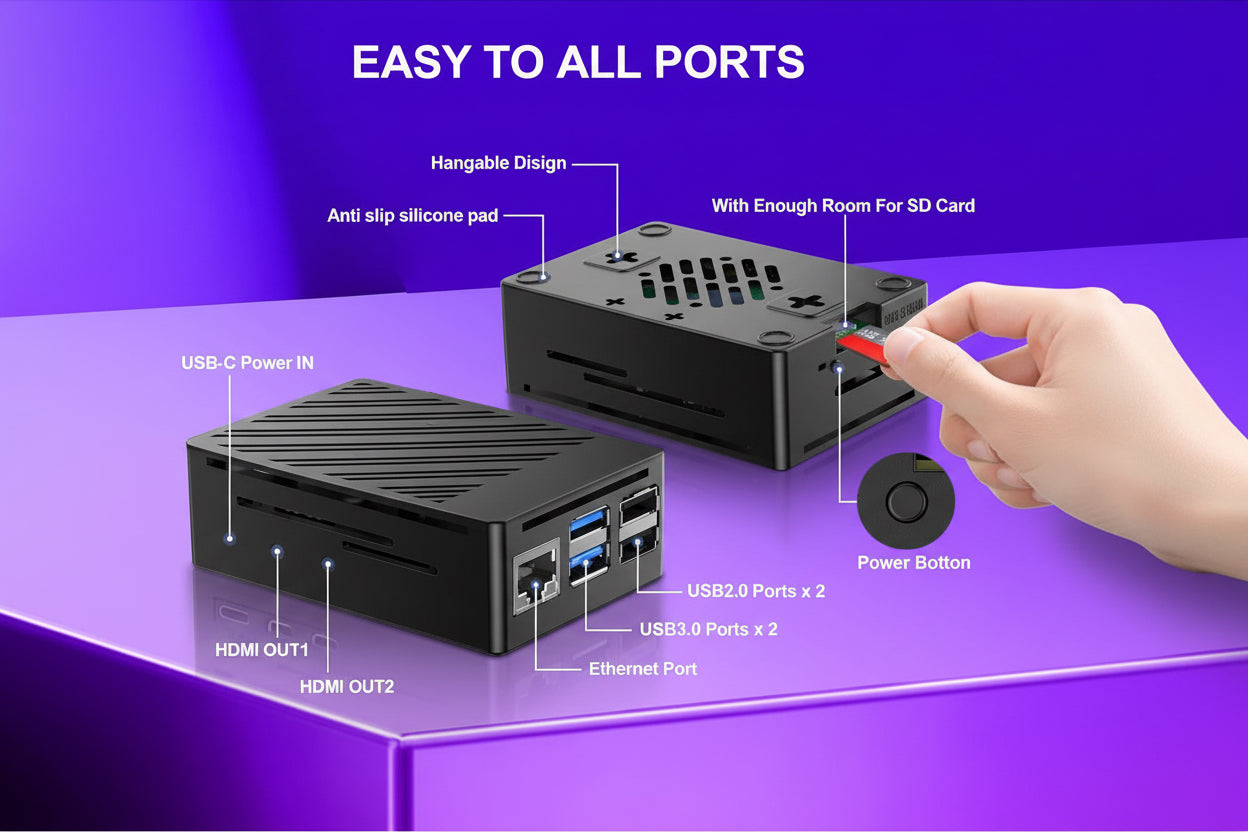

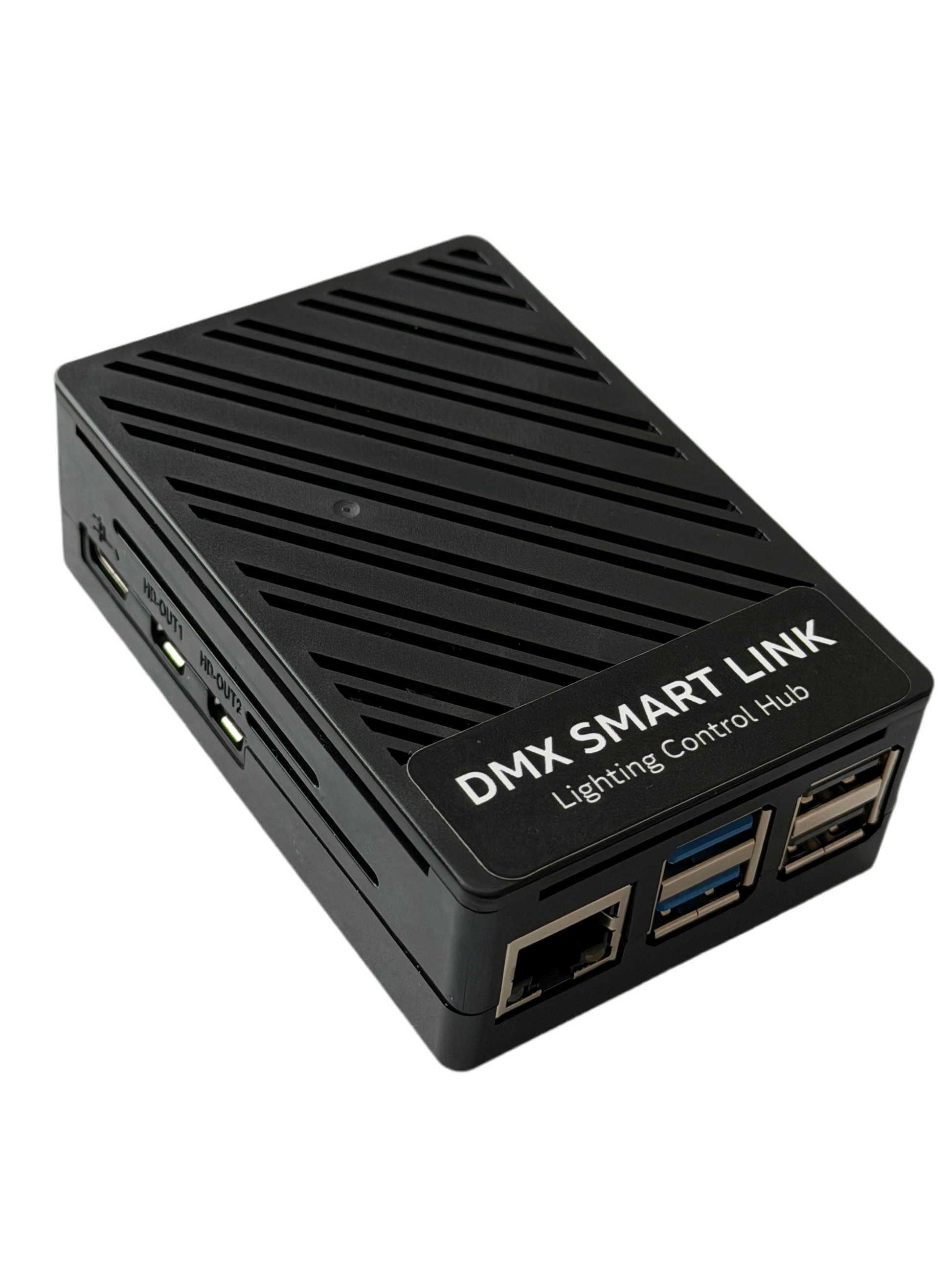

• 1× DMX Smart Link HUB (Raspberry Pi 5, fully configured)
• 2× Micro HDMI to HDMI Cables

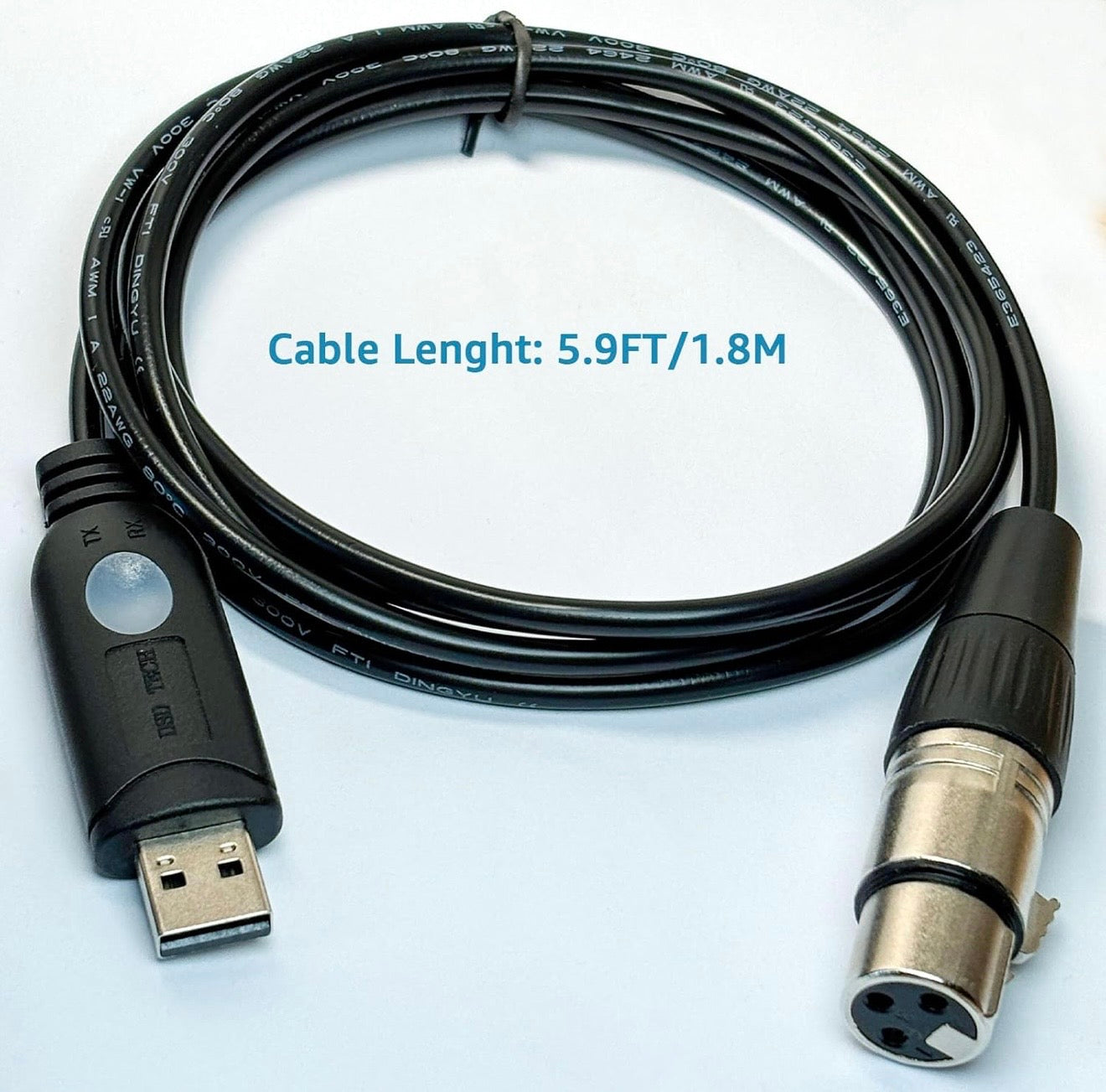

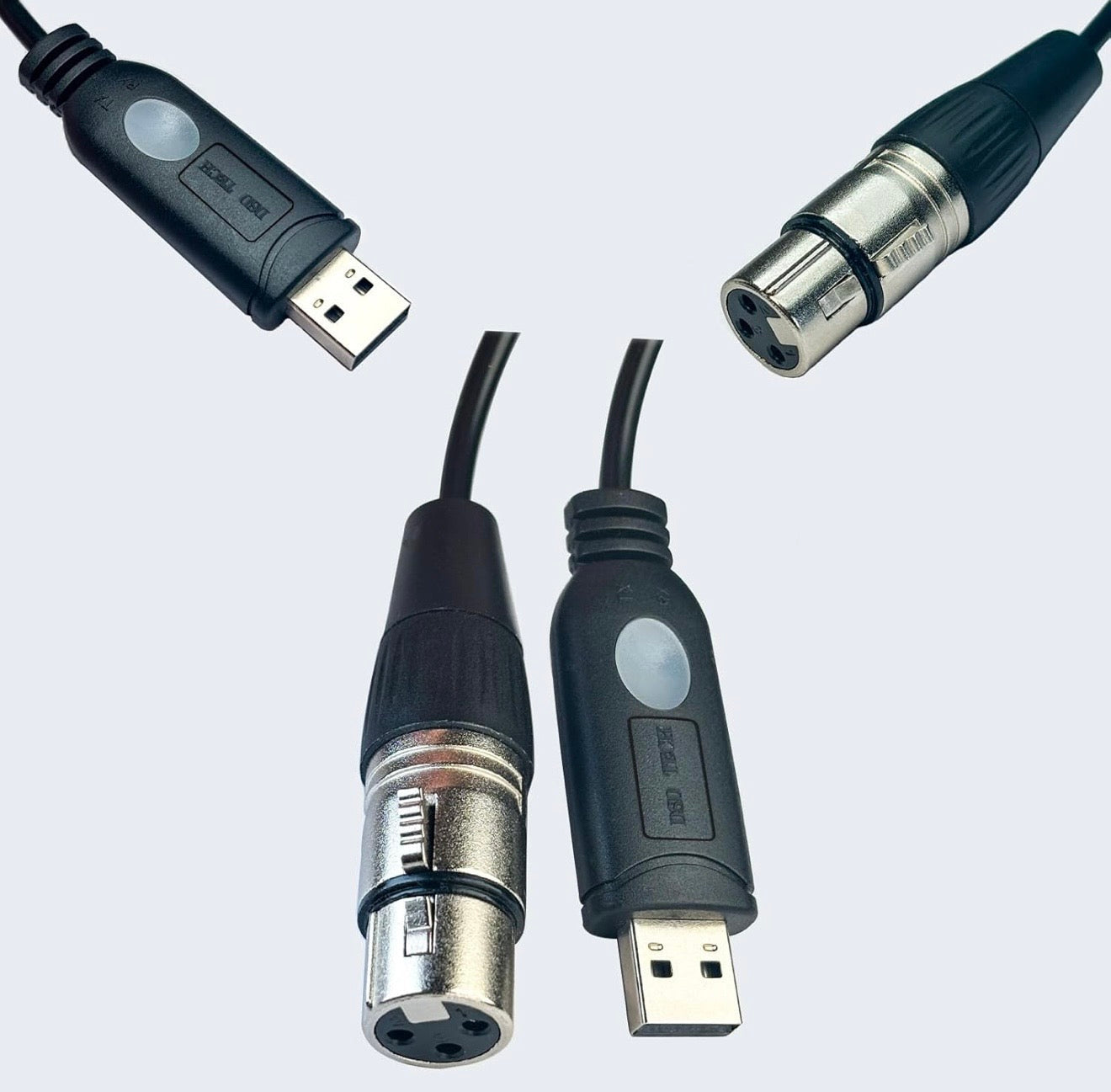

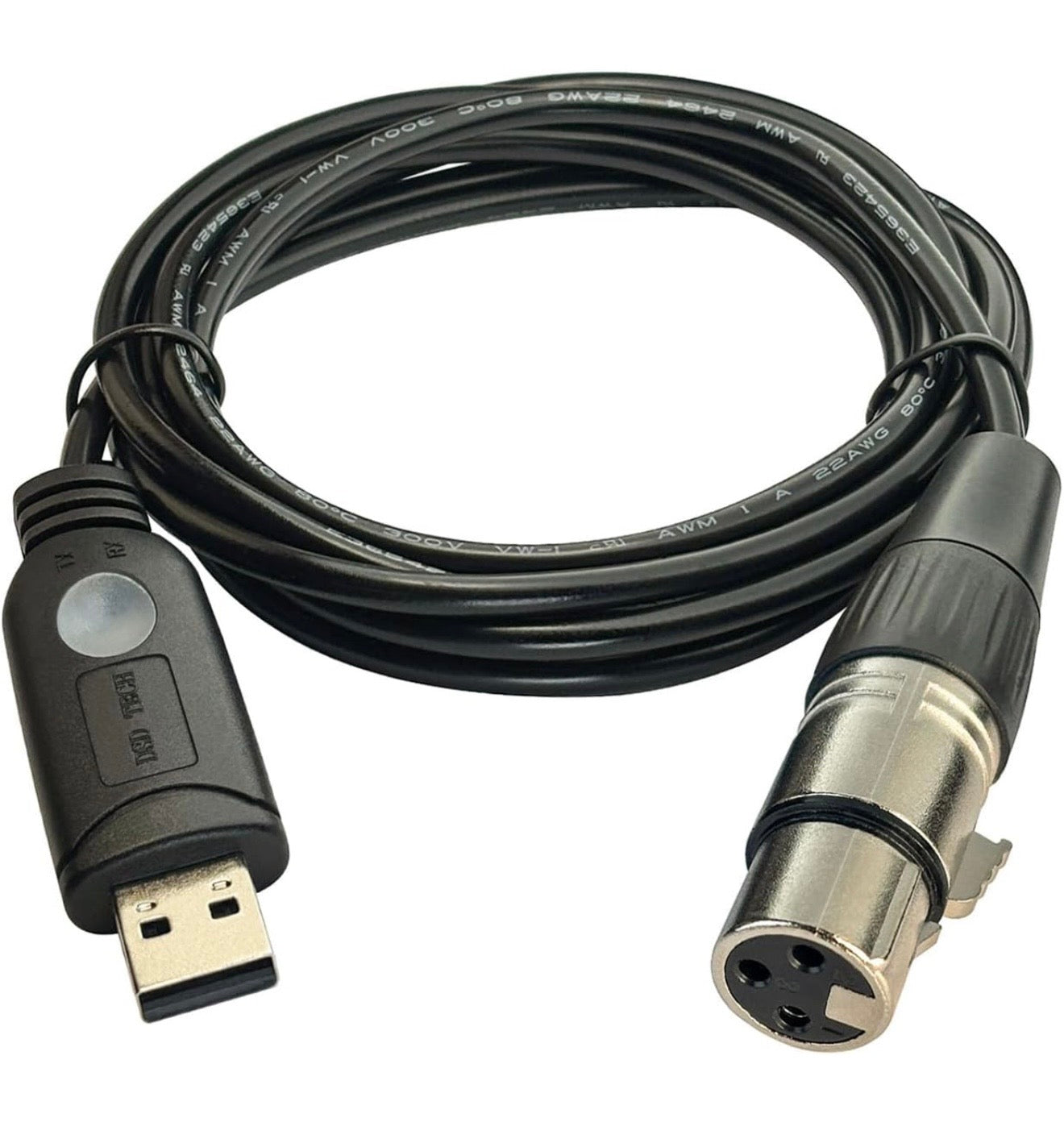

• 1× USB-to-DMX Output Interface (Open DMX compatible)
• 1× Pre-installed microSD card

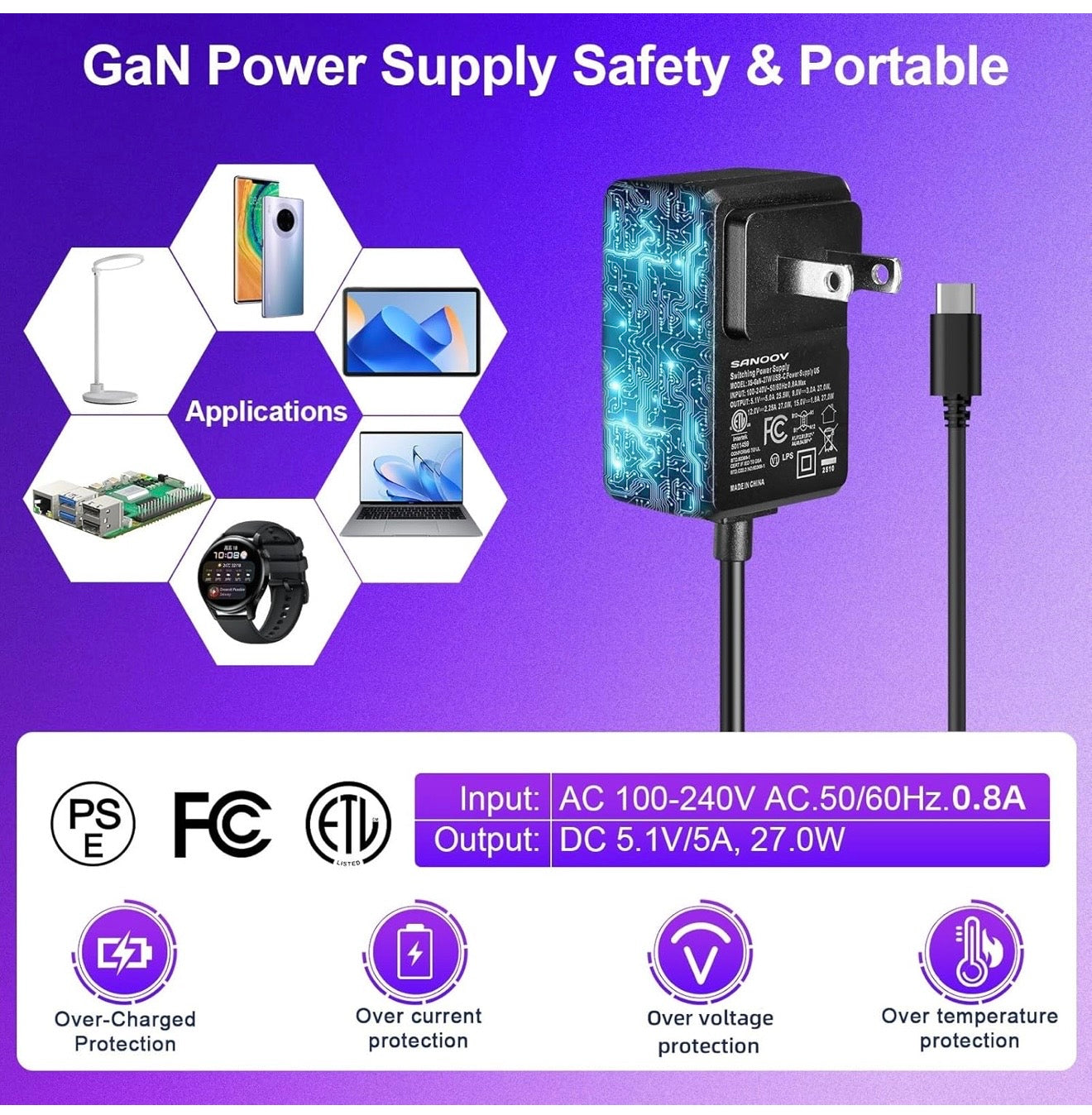

• 1× Power adapter
• 1× Quick Start Guide
• 🔐 DMX Smart Link Software (1-Year License included)

👤 Who This Is For

• 🎧 DJs needing reliable DMX output from Art-Net
• 🎭 Small venues and mobile rigs
• 🏠 Smart-home users adding DMX fixtures
• ⛪ Churches and production teams with simple output needs
• 🔌 Users who don’t need DMX input capture

✨ Key Features & Benefits

• 🔌 Physical DMX Output via USB
  Output DMX directly to fixtures using a reliable Open-DMX compatible interface.
• 🌐 Art-Net to DMX Bridge
  Route Art-Net from lighting software (LightKey, QLC+, Madrix) to physical DMX fixtures.

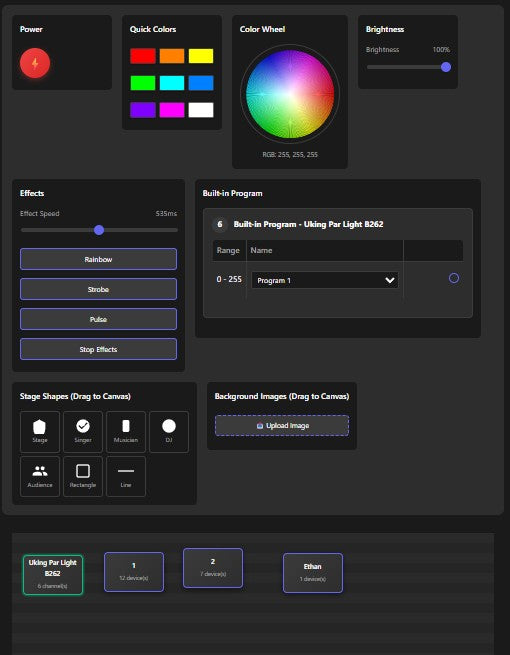

• 🧩 Visual Control Dashboard (Manual Fixture/Group Control)
  Includes a powerful web-based Visual Control interface for:
  • Manual control of fixtures and groups
  • Testing DMX universes and patching
  • Verifying output and configuration during setup
  • Perfect for troubleshooting and system validation before showtime.
• 🤖 AI Light Show (Audio Reactive) – NEW
  Run an AI Light Show mode inside the dashboard that generates audio-reactive lighting effects automatically.
  • Select audio input source (ex: USB sound card line-in)
  • Drive fixtures/groups based on audio analysis
  • Built-in media playback support (play audio/video while running the show)
  • Optional YouTube link playback with sync support (via yt-dlp)

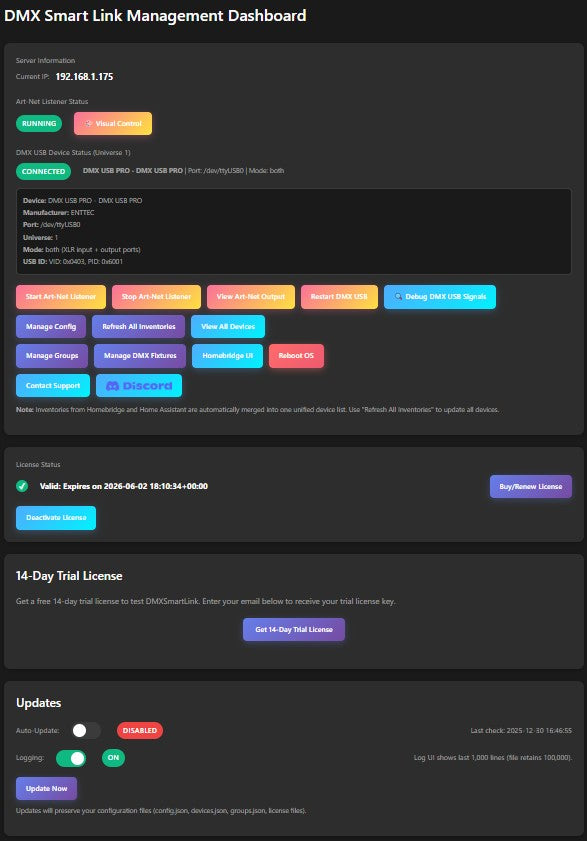

• 🎛 Built-In Web Dashboard
  Control lights, groups, colors, brightness, and effects via browser at
  https://<hub-ip>:5000
• 🎨 Smart Light Integration
  Control Govee smart lights alongside DMX fixtures in unified scenes.
• 🎙 Alexa Integration
  Control Alexa connected Smart Lights via DMX software.
• 🌌 Multi-Universe Support
  Supports multiple Art-Net universes with configurable mapping.
• 🧠 Automatic Device Detection
  USB-to-DMX interface is auto-detected and configured.

🔌 Physical DMX Details

• DMX Mode: Output only
• Connection: USB-to-DMX
• Compatibility: Open DMX / Open-DMX compatible devices
• XLR Type: Depends on connected cable (sold separately)

📦 What’s NOT Included

• DMX cables (3-pin or 5-pin)
• DMX adapters
• DMX input hardware

Accessories available separately.

🔐 License Information

• Includes 1-year DMX Smart Link license
• License is pre-activated
• Renewable after 12 months

🧭 Upgrade Path

Need professional DMX hardware or bidirectional control?

👉 Upgrade to the Pro Output Kit or Pro Dual I/O Kit for ENTTEC DMX USB Pro support.

📱 Companion App

Companion iPhone App (Free)

Manage your DMX Smart Link HUB from your phone — view device status, manage settings, and control key features through the companion app.
