DMX Smart Link HUB – Pro Output Kit (ENTTEC DMX USB Pro)

Professional-grade DMX output with rock-solid timing and reliability.

The DMX Smart Link HUB – Pro Output Kit pairs the Smart Link platform with the ENTTEC DMX USB Pro for dependable, low-latency DMX output. Ideal for venues, churches, and production environments where stability matters.

⚠️ Important Note

This kit provides DMX OUTPUT only using the ENTTEC DMX USB Pro.

The ENTTEC DMX USB Pro supports input or output per device, but not both simultaneously.

👉 For simultaneous DMX input + output, see the Pro Dual I/O Kit.

🔑 What’s Included

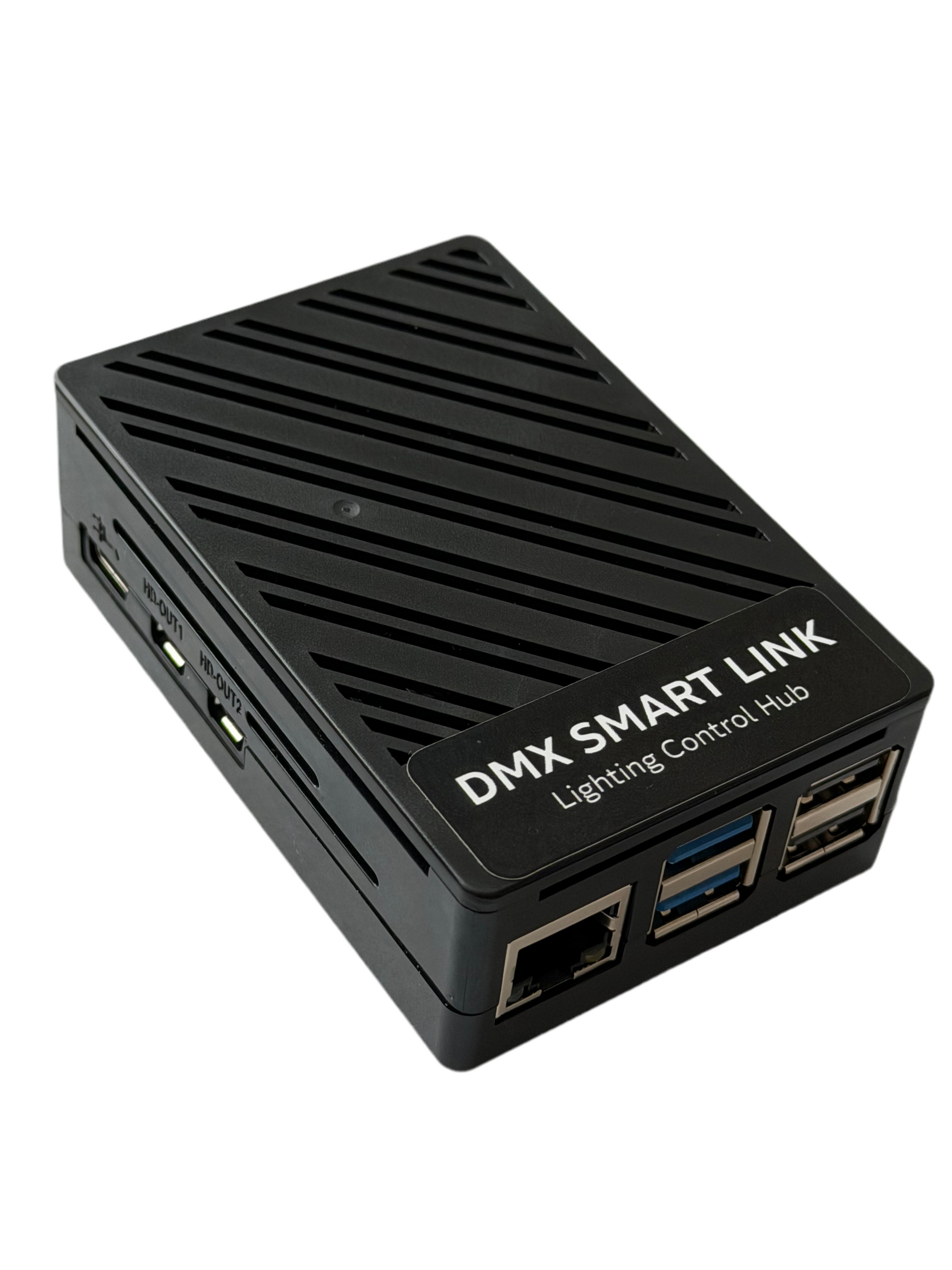

• 1× DMX Smart Link HUB (Raspberry Pi 5, fully configured)
• 2× Micro HDMI to HDMI Cables

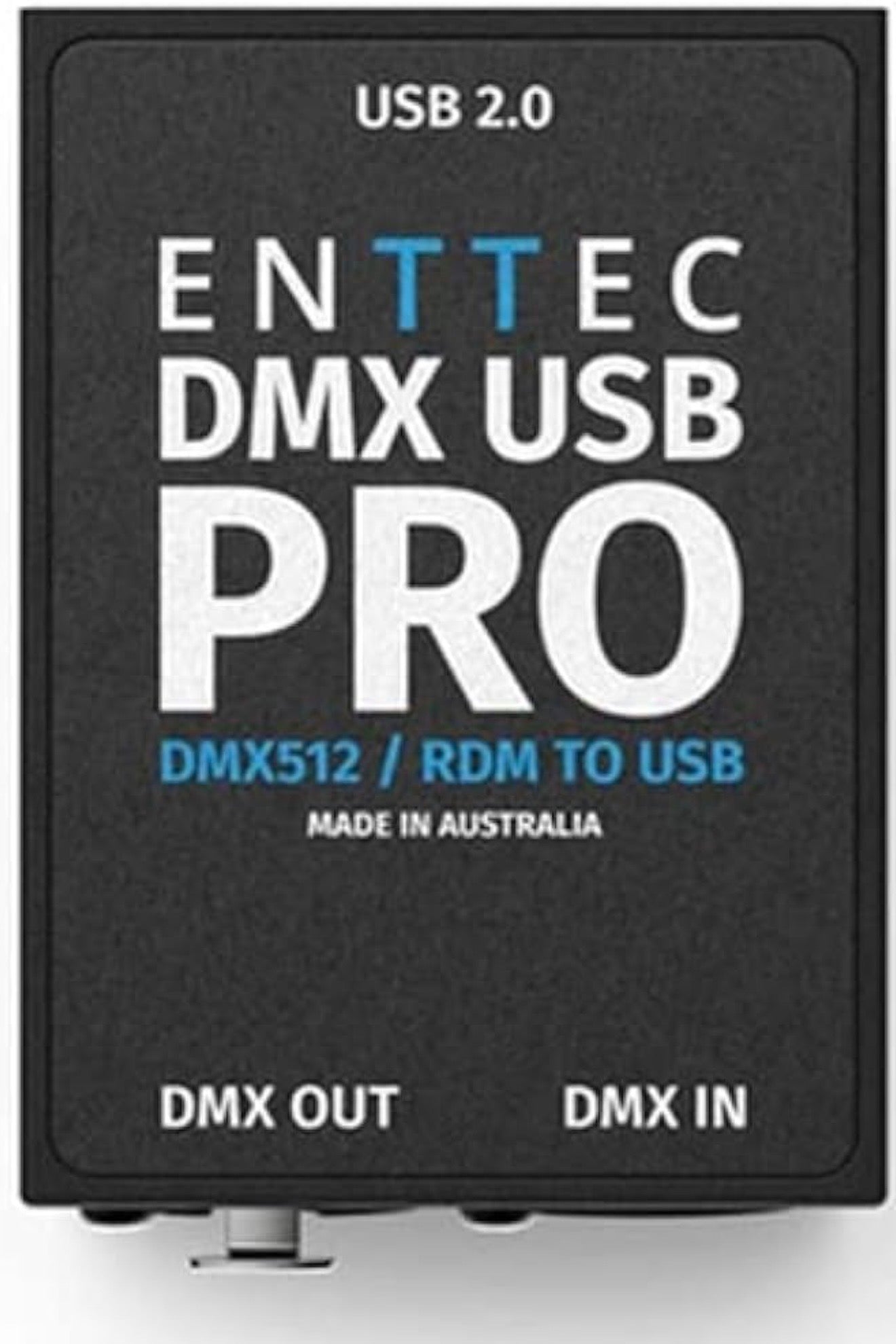

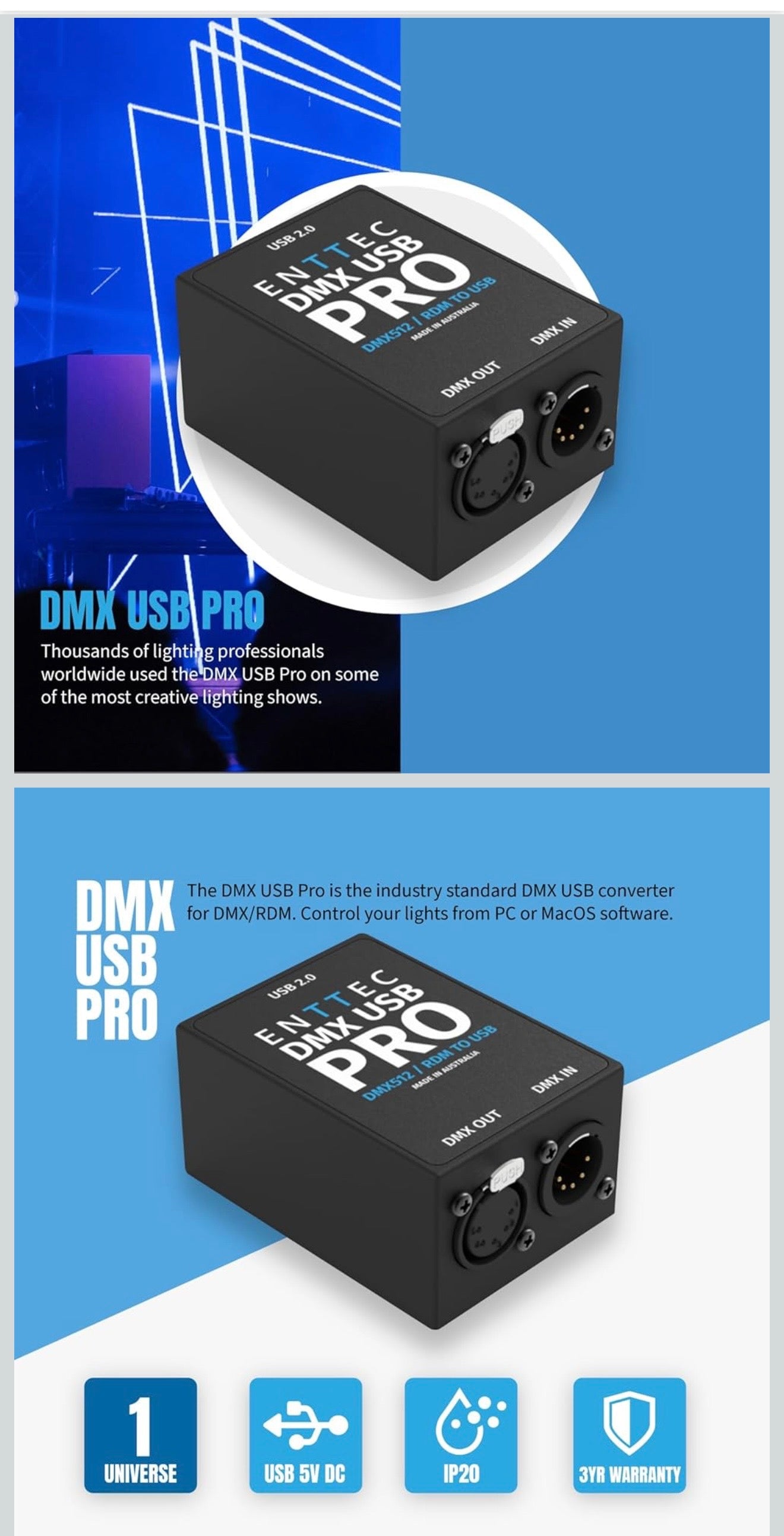

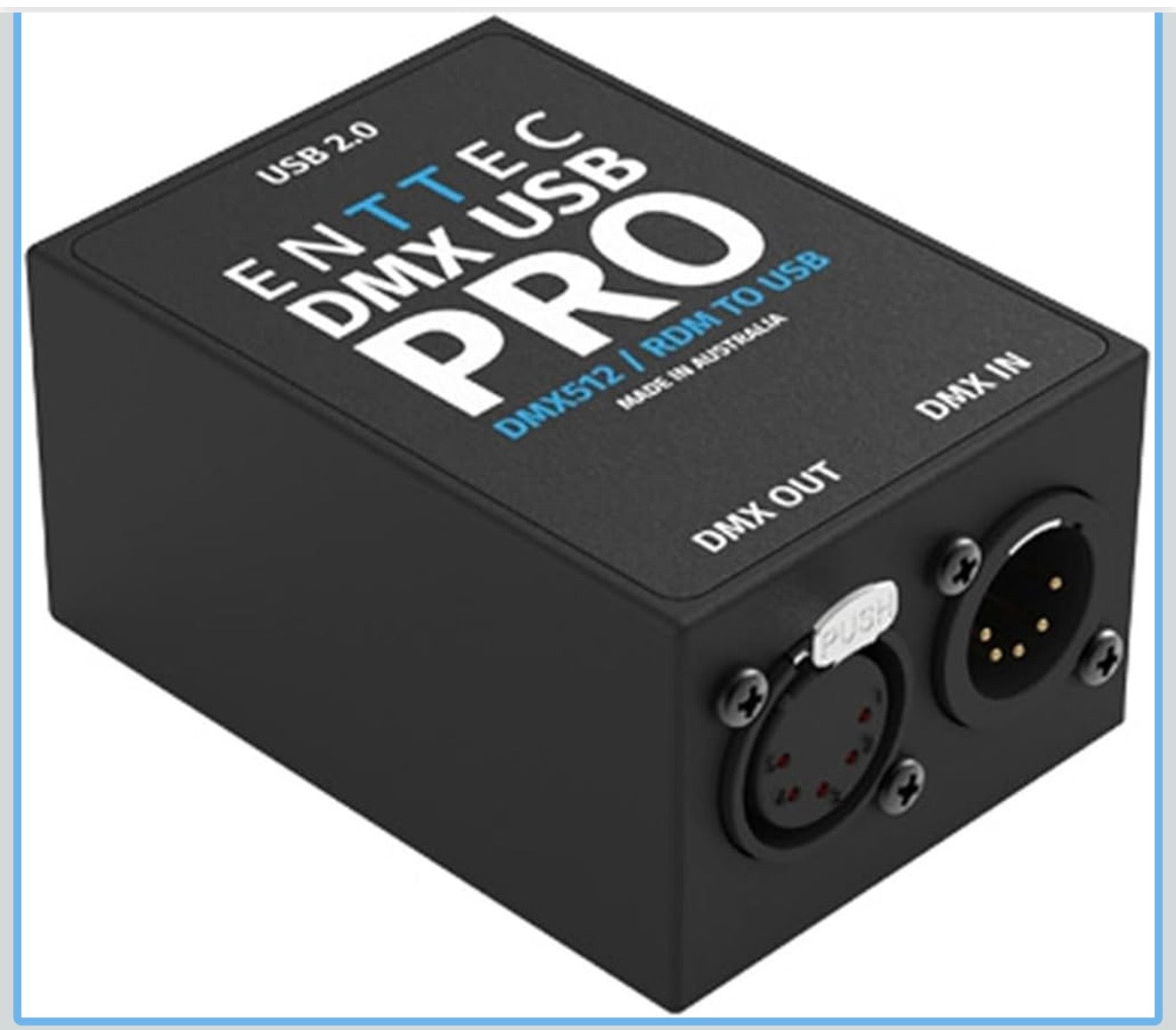

• 1× ENTTEC DMX USB Pro
• 1× DMX Pro XLR pigtail (required for output)
• 1× Pre-installed microSD card
• 1× Power adapter
• 1× Quick Start Guide
• 🔐 DMX Smart Link Software (1-Year License)

👤 Who This Is For

• 🎭 Professional venues and theaters
• ⛪ Churches and production teams
• 🎧 DJs who require stable, clocked DMX output
• 🎚 Lighting programmers using Art-Net with physical fixtures
• 🏗 Permanent or semi-permanent installations

✨ Key Features & Benefits

• 🎛 ENTTEC DMX USB Pro Output
  Industry-standard DMX interface with buffered, clocked output for maximum stability.
• 🧩 Visual Control Dashboard (Manual Fixture/Group Control)
  Includes a powerful web-based Visual Control interface for:
  • Manual control of fixtures and groups
  • Testing DMX universes and patching
  • Verifying output and configuration during setup
  • Perfect for troubleshooting and system validation before showtime.
• 🤖 AI Light Show (Audio Reactive) – NEW
  Run an AI Light Show mode inside the dashboard that generates audio-reactive lighting effects automatically.
  • Select audio input source (ex: USB sound card line-in)
  • Drive fixtures/groups based on audio analysis
  • Built-in media playback support (play audio/video while running the show)
  • Optional YouTube link playback with sync support (via yt-dlp)
• 🌐 Art-Net to Physical DMX
  Route Art-Net from LightKey, QLC+, Madrix, or other software directly to fixtures.
• 🎨 Unified Smart + DMX Control
  Combine smart lighting (Govee) and physical DMX fixtures into synchronized scenes.
• 🧠 Automatic Hardware Detection
  ENTTEC device is detected, configured, and assigned automatically.
• 📊 Built-In Web Dashboard
  Browser-based control and monitoring at
  https://<hub-ip>:5000
• 🎙 Alexa Integration
  Voice-trigger scenes via Homebridge.
• 🌌 Multi-Universe Support
  Flexible universe mapping for complex rigs.

🔌 Physical DMX Details

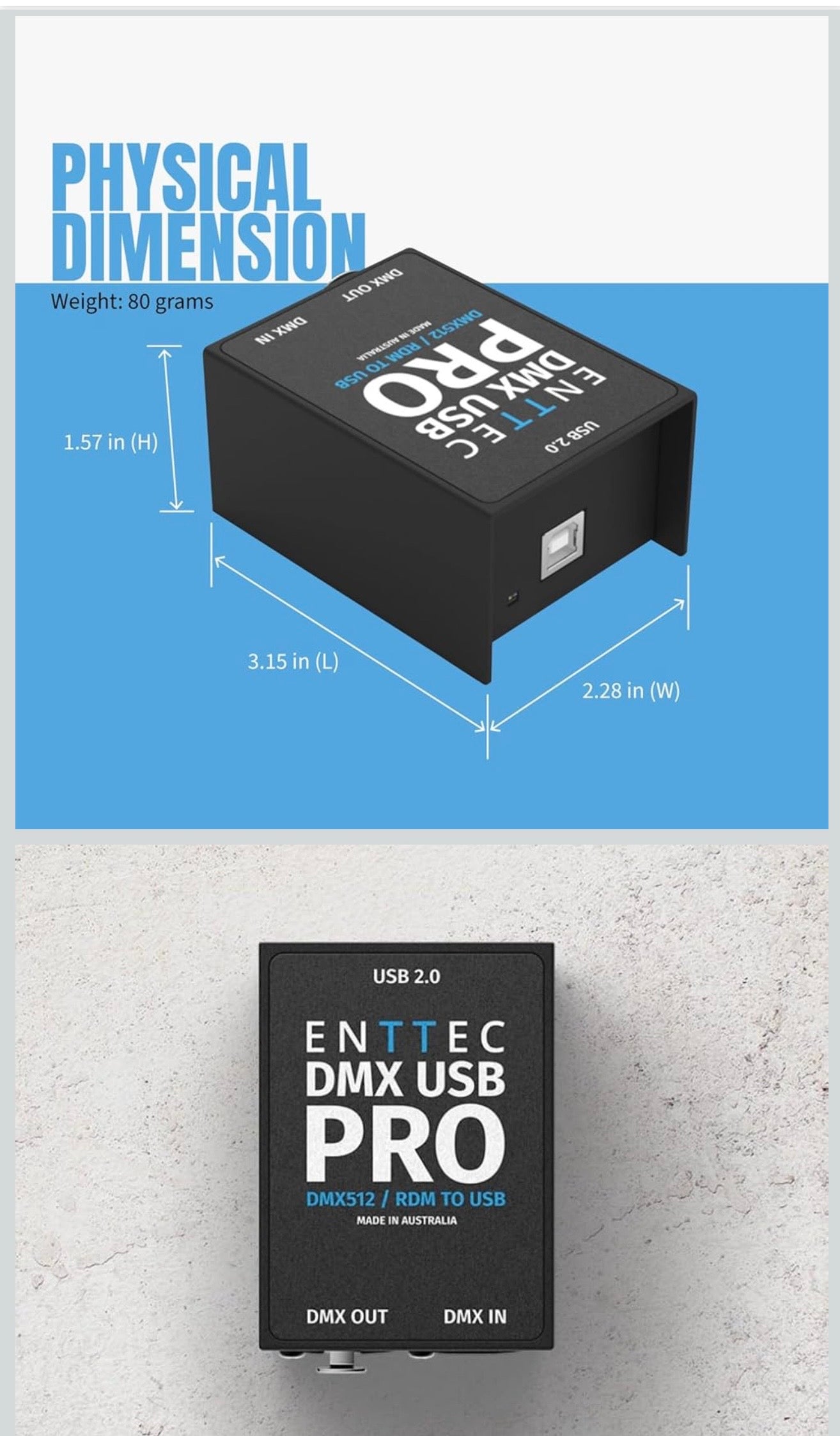

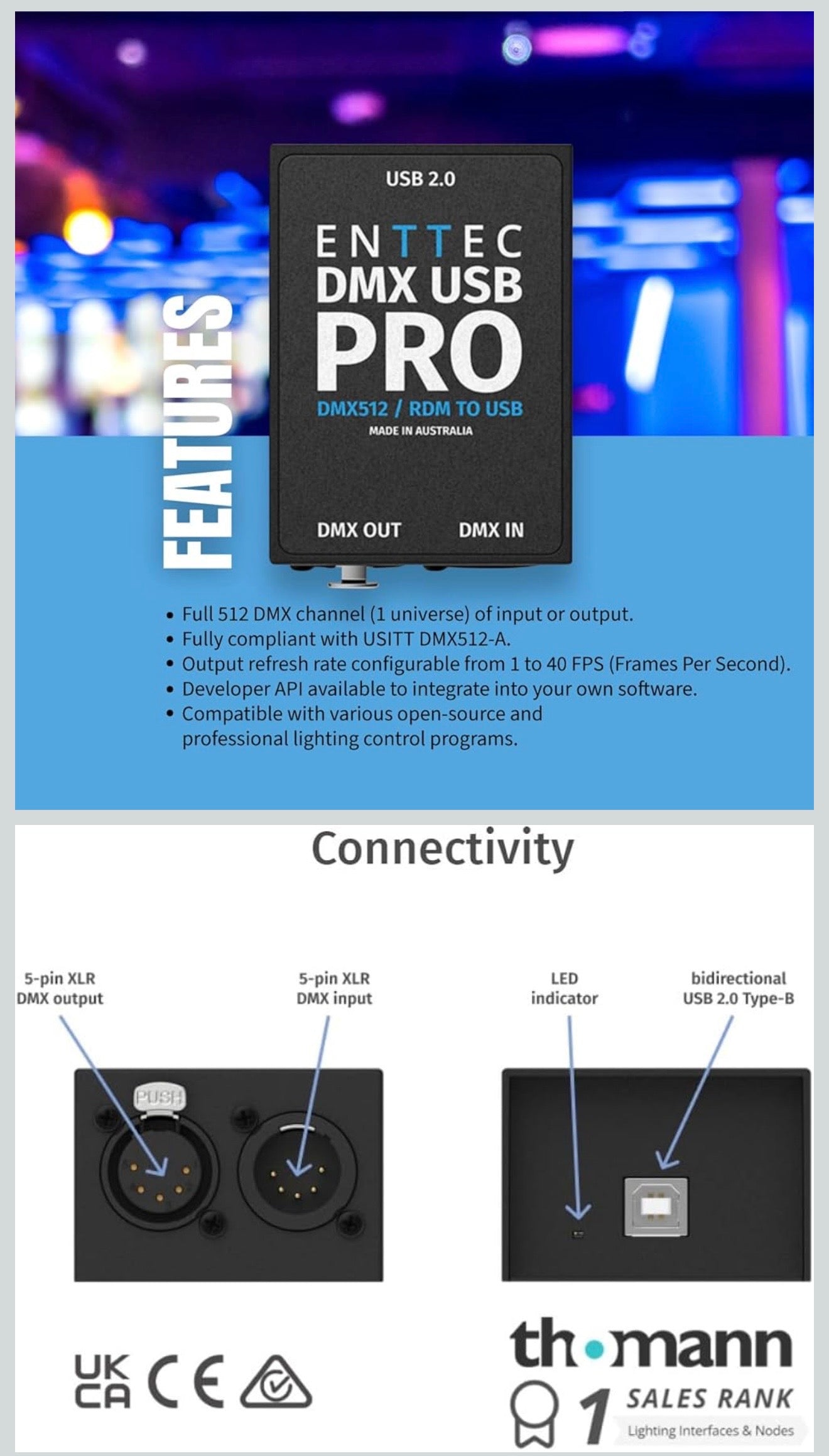

• Interface: ENTTEC DMX USB Pro
• XLR Connection: Via included pigtail
• Universes: Configurable via Art-Net

🔐 License Information

• Includes 1-year DMX Smart Link software license
• License is pre-activated on the hub

🧭 Upgrade Path

Need to capture DMX input while outputting DMX at the same time?

👉 Upgrade to the DMX Smart Link HUB – Pro Dual I/O Kit.

📱 Companion App (Add this section)

Companion iPhone App (Free)

Manage your DMX Smart Link HUB from your phone — view device status, manage settings, and control key features through the companion app.
